[!IMPORTANT] This feature was previously known as Dispatcher TTL, however it can also be used without the Dispatcher TTL feature therefore it has been renamed to the more generic name HTTP Caching Headers. The configuration PIDs still refer to the original name for backwards-compatibility reasons.

Purpose

Easily set caching headers on responses as described in RFC 9111. This includes both Cache-Control and Expires headers. Those headers determine for how long a response is cached in both browsers as well as proxies/CDNs. Optionally the Dispatcher can be configured to respect those headers as well.

You can configure cache expiration times (time-to-live, TTL) with either Cache-Control or Expires headers set through servlet filters (either OSGi HTTP Whiteboard Spec 1.1 or Sling Filters) for specific request URL patterns or response types.

How to Use

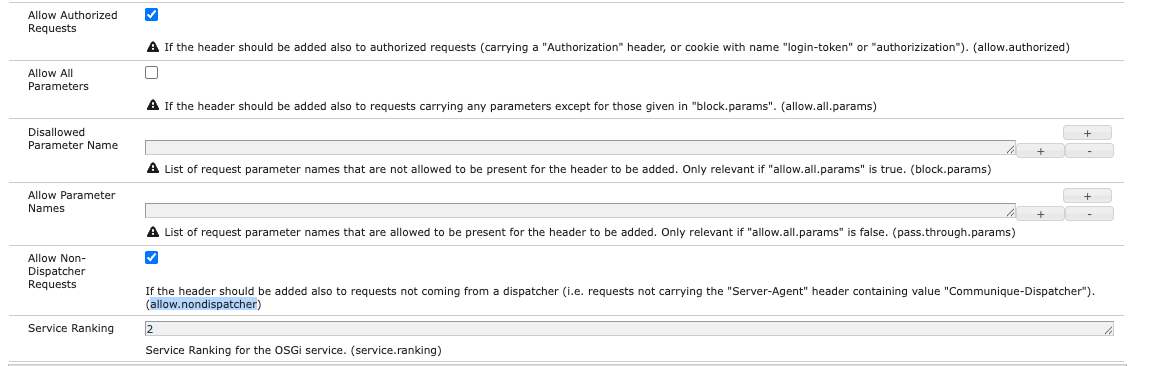

Create OSGi Configurations

All servlet filters can be configured via factory configurations, i.e. you can configure arbitrarily many filters with one of the mechanism outlined in https://sling.apache.org/documentation/bundles/configuration-installer-factory.html. All filters are only ever active in case all the following conditions are met:

1. request method is GET
2. No URL parameters (can be overridden with boolean service property allow.all.params)
3. Request coming from AEM Dispatcher (Server-Agent request header is Communique-Dispatcher), see also the following note.

Note

This feature expects that the Dispatcher was involved in the request chain. This expectation is managed via a known HTTP header. To simulate the Dispatcher, add the necessary HTTP header to the request:

Server-Agent: Communique-Dispatcher

An example cURL request to add this header:

curl -v -H “Server-Agent: Communique-Dispatcher” http://localhost:4502/content/test -u admin:admin

The output of the above would be:

*   Trying ::1...
* connect to ::1 port 4502 failed: Connection refused
*   Trying 127.0.0.1...
* Connected to localhost (127.0.0.1) port 4502 (#0)
* Server auth using Basic with user 'admin'
> GET /content/test HTTP/1.1
> Host: localhost:4502
> Authorization: Basic YWRtaW46YWRtaW4=
> User-Agent: curl/7.43.0
> Accept: */*
> Server-Agent: Communique-Dispatcher
>
< HTTP/1.1 404 Not Found
< Date: Tue, 18 Oct 2016 00:17:22 GMT
< Cache-Control: max-age=10000
< X-Content-Type-Options: nosniff
< X-Frame-Options: SAMEORIGIN
< Set-Cookie: cq-authoring-mode=CLASSIC;Path=/;Expires=Tue, 25-Oct-2016 00:17:22 GMT
< Expires: Thu, 01 Jan 1970 00:00:00 GMT
< Content-Type: text/html; charset=ISO-8859-1
< Transfer-Encoding: chunked
<
* Connection #0 to host localhost left intact

Request URL Pattern Based

All configuration in this section are for OSGi HTTP Whiteboard servlet filters (i.e. they kick in prior to any Sling handling). They all have the following property in common:

• filter.pattern: A regular expression pattern matched against the request’s URL path (prior resource resolving)

Resource Type Based

All configurations in this section are for Sling Servlet filters (i.e. they are triggered only if the request is handled by Sling). They all have the following property in common:

max.age: Max age value (in seconds) to put in Cache-Control header.

Usage with Dispatcher

It is mandatory to store the Caching response headers in the Dispatcher in order to also serve it for cached responses.

Optionally one can make the Dispatcher also switch from explicit invalidation (default) to implicit TTL based invalidation via the property /enableTTL "1".

Usage with CDN

Most CDNs respect Cache-Control headers by default. For example the Fastly CDN used in AEMaaCS does that. For other CDNs please refer to their documentation.
